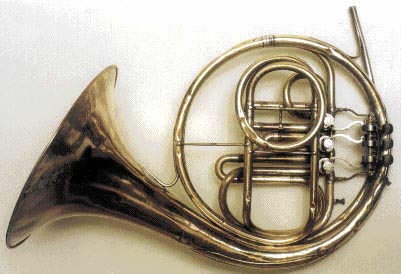

Alexander Single F


Label:
Gebr. Alexander
       Mainz
Model:
(single)
Serial Number:
none
Date of Manufacture:
ca. 1900?
Key(s):
F
Valves:
3 clockspring rotary, tapered cores, mechanical linkage
Bore:
11.5 mm.
Bell Flare:
gusset
Bell Throat:
approx. 9 cm.
Bell Diameter:
31 cm.
Base Metal:
brass with nickel silver trim
Finish:
lacquer (mostly removed)

This horn has seen a lot of use.  The bell is worn very thin and has been patched in several places. Numerous dents throughout. There is also a hole in the bell tail above the first valve where the thumb of the left hand has worn through.

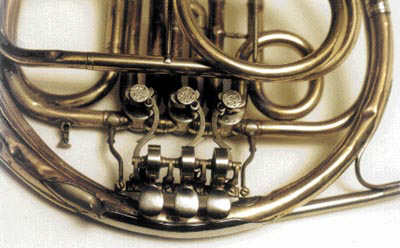

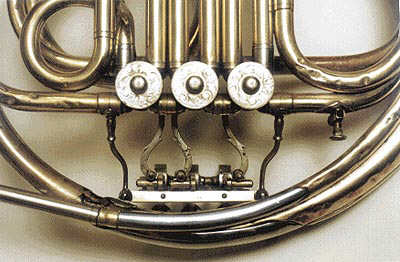

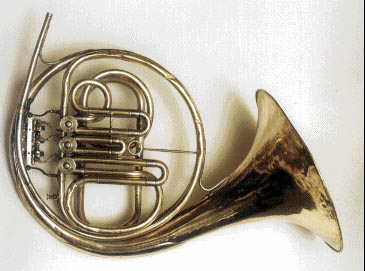

Clock spring valves are typically mounted "upside down" as compared with modern horn design. That is, the linkages from the finger levers are on the front side of the horn with very ornate screws on the the rotors, while the similarly ornate valve caps are on the player's side.
