C. Mahillon

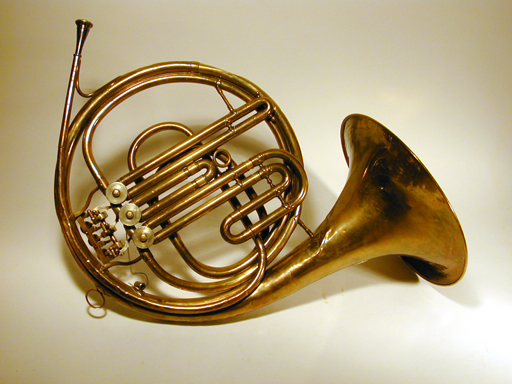

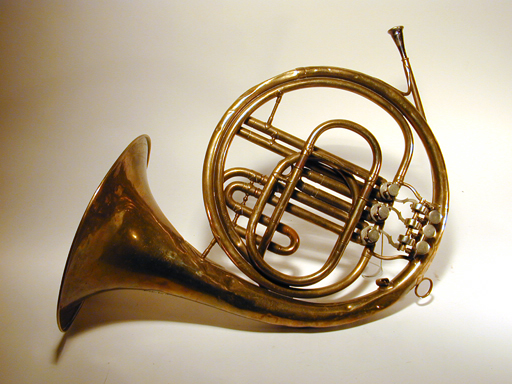

Model 29 Single Horn

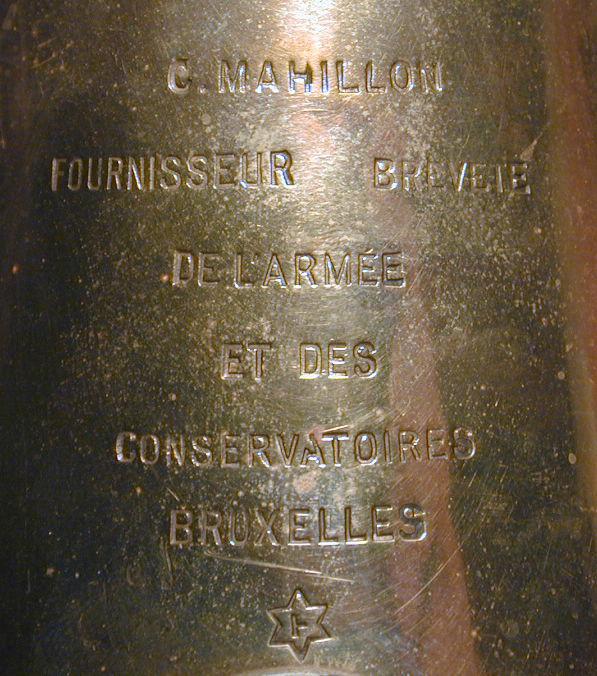

Label (Bell):
Model:
29 Single
Serial Number:
none
Date of Manufacture:
ca. 1897
Key(s):
F (also available in E-flat)
Valves:
3 clockspring rotary
Bore:
11.65 mm
Mouthpiece Receiver:
8.15 mm
Crook Socket:
Bell Flare:
Bell Throat:
about 7 cm.
Bell Diameter:
27.7 cm.
Base Metal:
brass
Finish:
raw brass




Click for larger image>


Click for larger image>

The firm of C. Mahillon was founded in Brussels in 1836 by Charles Borroméee Mahillon (1813 - 1887), who after serving apprenticeship in England returned to Brussels to become a partner with his brother-in-law, C.G. Bachman as Bachman & Mahillon. In 1844 they opened a branch in London and by 1847 were exhibiting both brass and woodwind instruments. By 1856 C. Mahillon became the most important wind instrument manufacturer in Belgium and was suppplier to the army, and also maker of percussion instruments. Around 1865 eldest son, Victor Charles Mahillon (1841 - 1924) was taken into the firm as a partner. The firm continued in operation by the family for a century until 1935. Two years later the firm was taken over by Jean Adrien Smits doing business under the name "Mahillon & Co. succ. J. Smits."

The horn is interesting in that it employs rotary valves instead of Périnet pistons which are more commonly found on Belgian and French instruments, including those of C. Mahillon. This is one of two models made by Mahillon for export to countries where larger bore rotary valve horns were preferred. Model 28, also with rotary valves but different wrap, is pictured in an 1897 catalog. At 225 francs this model 29 was at the time the most expensive horn in the Mahillon line.

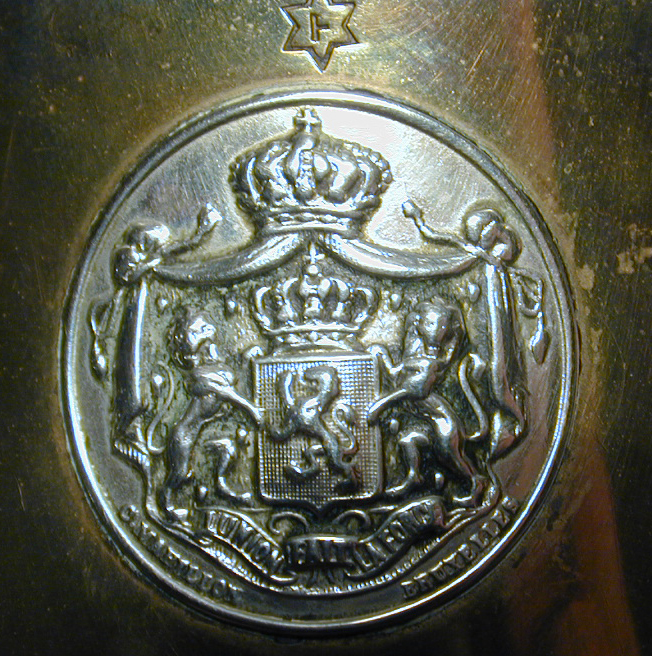

The medalion that is affixed to the bell below the label contains the Greater Seal of Belgium. It is described as follows:
The shield is emblazoned: Sable, a lion rampant or, armed and langued gules. It is surmounted by a helmet with raised visor, with mantling or and sable and the royal crown in lieu of a crest. Behind the shield are placed a hand of justice and a sceptre with a lion. The grand collar of the Order of Leopold surrounds the shield. Two lions guardant proper support the shield as well as a lance with the national colours black, yellow and red. Underneath the compartment is placed the motto L'UNION FAIT LA FORCE in French or EENDRACHT MAAKT MACHT in Dutch. The ribband of the motto is red, with black stripes on either side. The lettering is golden. Since the Royal Decree of 1837 never received an official translation, the use of the Dutch version of the motto is customary rather than official. The whole is placed on a red mantle with ermine lining and golden fringes and tassels, ensigned with the royal crown. Above the mantle rise banners with the arms of the nine provinces that constituted Belgium in 1837. They are (from dexter to sinister) Antwerp, West Flanders, East Flanders, Lige, Brabant, Hainaut, Limburg, Luxembourg and Namur.

The greater arms are used only rarely. They adorn the great seal that is affixed to laws and international treaties.

References


Jeroen Billiet, personal communication.
